Dewatering Queensland
See Our Latest Projects From Construction Sites Across the Gold Coast, Brisbane, and the Sunshine Coast Area.
Azzure Apartments
Walter Iezzi Property Group
Dewatering Spears, Water Treatment, Project Management
GSS was the selected dewatering contractor to provide groundwater management for the proposed double basement excavation for the Azzure Apartment project in Bokarina, Sunshine Coast, Queensland.
​
With over a 5-meter drawdown from existing groundwater levels required, GSS installed over 120 meters of dewatering spears along the sheet-piled perimeter. These systems were installed specifically to take advantage of the challenging ground conditions located on site due to the natural impermeable clays cutting diagonally through the middle of the site.
Project Walk through
Wellpoint Installation along perimeter of sheet piled wall
Electric dewatering pump located in lower level basement to remain in operation during basement construction
Project Walk through
In addition, large water treatment units were also established on the construction site to allow the discharged water to successfully meet the strict release criteria set by the Sunshine Coast Council. This had proved an extremely challenging process as the iron and heavy metals levels within the raw groundwater exceeded the criteria by up to 3,700%
Si Bilinga Apartments
GCB Constructions
Deep Wells, Dewatering Spears, Project Management
With highly permeable sands down to 10m and very close proximity to the ocean, GSS had the challenge to provide a solution for a double basement construction in Bilinga along the Gold Coast in QLD
​
With over a 4-meter drawdown required, a set of deep wells were installed to provide up to 20L/s of volume removal. Due to an unknown indurated sands layer found at 10m along with existing sheet piles only extending to 8m, the deep wells eventually became insufficient to deal with the hydraulic grade that flowed horizontally along the indurated sands (Coffee Rock)
Initial bulk earthworks
Ring main installation
Dewatering Pumps are located in the constructed basement. External exhaust for the diesel pump and an electric pump for 50% risk reduction
Initial bulk earthworks
This recharge of groundwater was consistent as it flowed from the Gold Coast airport west of site to the beach head directly east. To capture this, a wellpoint system was installed along the perimeter which was later buried to provide constant dewatering during the excavation and construction process. The wellpoints efficiently kept the site dry and prevented any further delays
Why Choose GSS?
We Let Our Customers Answer That.
"require custom-made shoring or dewatering and we go nowhere else but Ground Support Systems (Aust) . Leading from the front at GSS is big Mitch Moore ,Mick Gander ,Gaven Mead Josh Hockley All these boys will answer their phone at any time of the day/night and bend over backward to make sure they deliver an exceptional product to suit all our jobs.
Tapestry Apartments
Siera Group
Deep Wells, Water Treatment, Project Management
GSS was the main company to provide groundwater management for stage 2 of the proposed single basement excavation for the Brookland Retirement Village located only 15 minutes from the Brisbane CBD. Nestled in Robertson, QLD the dewatering spears required pre auguring due to the stiff clays located through out site.
​
The Drift Apartments
GDI Group
Deep Wells, Dewatering Spears, Water Treatment, Project Management
GSS designed, installed and managed this 4-level basement dewatering system located in the heart of Main Beach, Gold Coast. With focus put on the retention wall design, GSS manage to isolate the excavation dewatering seperate to the sorrounding Aquifer. This allowed our team to employ new strategies and techniques never seen on the Gold Coast such as Mini rig well installation, Sacrificial spears, and a staged dewatering approach that allowed for massive cost savings through the project.
​

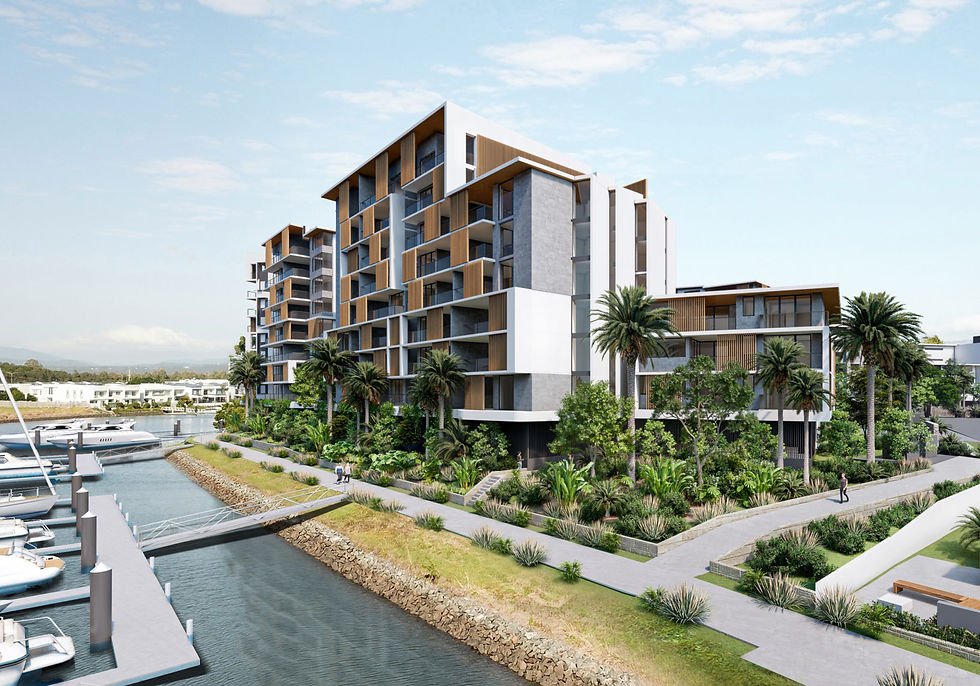

Marina Point Apartments
TSG Build
Dewatering Spears, Water Treatment
Marina Point located in Hope Island, Gold Coast, QLD, consisted of a 2 tower single basement design that dropped below the water table. With a multi layer soil strata consisting of sands and acid sulphate soils, GSS crew install over 300 meters of wellpoint system internal and external around the sheet piled basement perimeter. This also included GSS treatment of extremely high levels of Heavy metals to meet disposal requirements with an approx. 8000% reduction in Iron.
Wellpoint dewatering for the basement construction in Miami Beach, Gold Coast, QLD
Wellpoint dewatering for the basement construction in Miami Beach, Gold Coast, QLD
Wellpoint dewatering for the basement construction in Miami Beach, Gold Coast, QLD
Wellpoint dewatering for the basement construction in Miami Beach, Gold Coast, QLD
The Verge - Stage 3
Hutchinson Builders
Drilling, Dewatering Spears, Water Treatment, Project Management
With a successful stage 2, GSS was brought back to The Verge for stage 3 basement construction located in Miami Beach, Gold Coast, QLD. With a multi layer soil strata consisting of indurated sands, GSS crew pre-angered 200 meters of wellpoint system around the sheet piled basement perimeter. This also included GSS settlement tanks for Heavy metal reduction to meet disposal requirements.
Brookland Retirement Village
FDC Construction
Drilling, Dewatering Spears, Project Management
GSS was the main company to provide groundwater management for stage 2 of the proposed single basement excavation for the Brookland Retirement Village located only 15 minutes from the Brisbane CBD. Nestled in Robertson, QLD the dewatering spears required pre auguring due to the stiff clays located through out site.
​
Emergency callout requiring wellpoint dewatering installation for the Gold Coast City Council repair works
Emergency callout requiring wellpoint dewatering installation for the Gold Coast City Council repair works
Emergency callout requiring wellpoint dewatering installation for the Gold Coast City Council repair works
Emergency Repair Works
Gold Coast City Council
Dewatering Spears, After Hours Call Out
With a failed water main along one of the busiest roads in Gold coast, GSS was engaged after one phone call to provide a dewatering ​system to allow for safe and dry excavation of the pressure main. As soon as the phone call came through on Saturday afternoon, our crew was on site and installing within the hour.

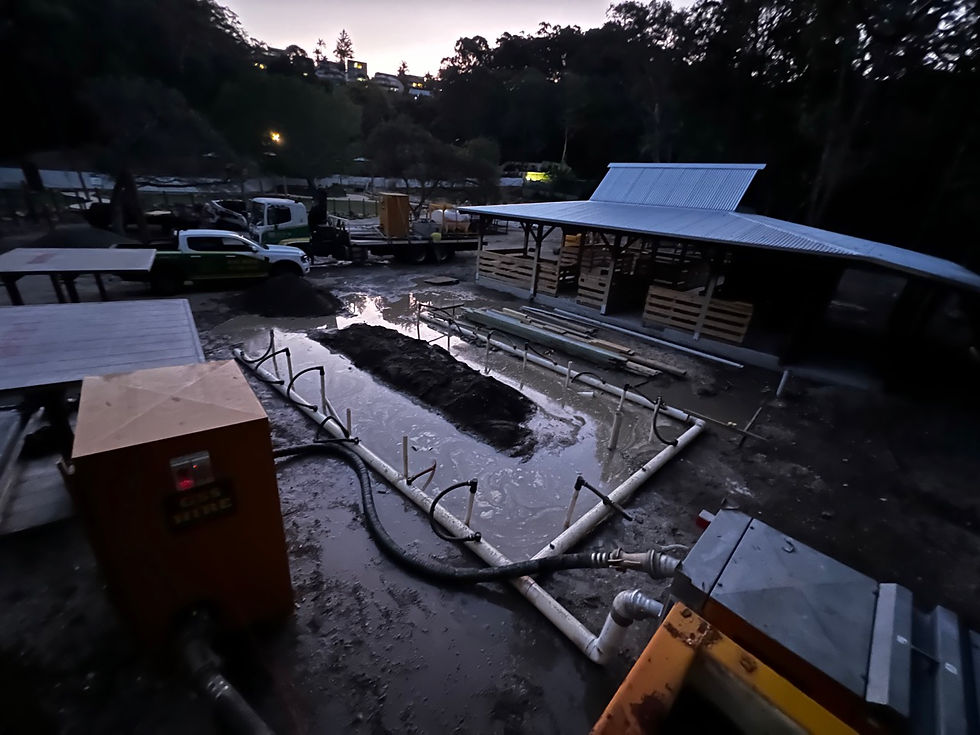

Wellpoint spears used to reduce groundwater trapped in sandy clays during tank installs for the Currumbin Wildlife Sanctuary project
Wellpoint spears used to reduce groundwater trapped in sandy clays during tank installs for the Currumbin Wildlife Sanctuary project
Wellpoint spears used to reduce groundwater trapped in sandy clays during tank installs for the Currumbin Wildlife Sanctuary project
Wellpoint spears used to reduce groundwater trapped in sandy clays during tank installs for the Currumbin Wildlife Sanctuary project
Currumbin Wildlife Sanctuary
Raynor Plumbing
Dewatering Spears, Water Treatment, Project Management
With groundwater trapped in saturated sandy clays beneath the surface, GSS was required to remove problem water by installing wellpoints, allowing for a safe and dry excavation of the proposed tank pits. In addition GSS established water treatment unit on site to allow for discharged effluent to meet strict disposal criteria ensuring minimal impact to the surrounding environmental
​
